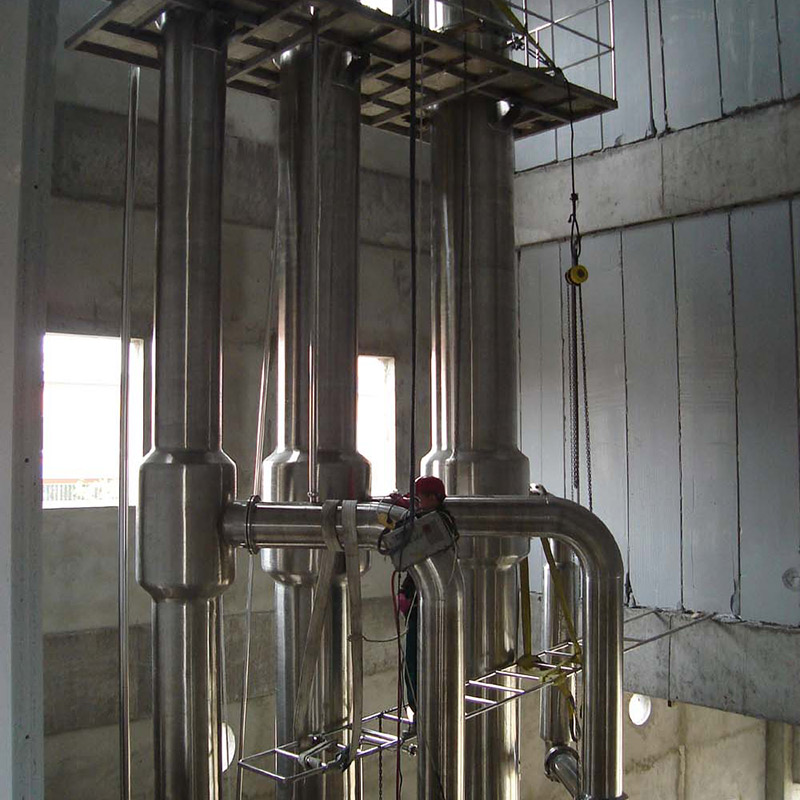

customized Falling Film Evaporator Mvr for ethanol milk juice Jam food
Evaporator Type
| Falling film evaporator | Used for low viscosity, good fluidity material |
| Rising film evaporator | Used for high viscosity, poor fluidity material |
| Forced-circulation evaporator | Used for puree material |
For the characteristic of juice, we select the falling film evaporator. There are four types of such evaporator:
Parameters
| Item | 2 effectsevaporator | 3 effectsevaporator | 4 effectsevaporator | 5 effectsevaporator | ||
| Water evaporation volume(kg/h) | 1200-5000 | 3600-20000 | 12000-50000 | 20000-70000 | ||
| Feed concentration (%) | Depend on material | |||||
| Product concentration (%) | Depend on material | |||||
| Steam pressure (Mpa) | 0.6-0.8 | |||||
| Steam consumption (kg) | 600-2500 | 1200-6700 | 3000-12500 | 4000-14000 | ||
| Evaporation temperature (°C) | 48-90 | |||||
| Sterilizing temperature (°C) | 86-110 | |||||
| Cooling water volume (T) | 9-14 | 7-9 | 6-7 | 5-6 | ||
Application
Multi-effect Evaporation system is suitable to food and drink processing, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other sectors of high concentration, high viscosity, also with insoluble solids to low concentration.Multi-effect Evaporation system can widely used in the concentration of the glucose, starch sugar, maltose, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.
|
Project |
Single-effect |
Double-effect |
Triple-effect |
Four-effect |
Five-effect |
|
Water evaporation capacity (kg/h) |
100-2000 |
500-4000 |
1000-5000 |
8000-40000 |
10000-60000 |
|
Steam pressure |
0.5-0.8Mpa |
||||
|
Steam consumption/evaporation capacity (With thermal compression pump) |
0.65 |
0.38 |
0.28 |
0.23 |
0.19 |
|
Steam pressure |
0.1-0.4Mpa |
||||
|
Steam consumption/evaporation capacity |
1.1 |
0.57 |
0.39 |
0.29 |
0.23 |
|
Evaporation temperature (℃) |
45-95℃ |
||||
|
Cooling water consumption/evaporation capacity |
28 |
11 |
8 |
7 |
6 |
|
Remark: In addition to the specifications in the table, can be separately designed according to customer's specific material. |
|||||
