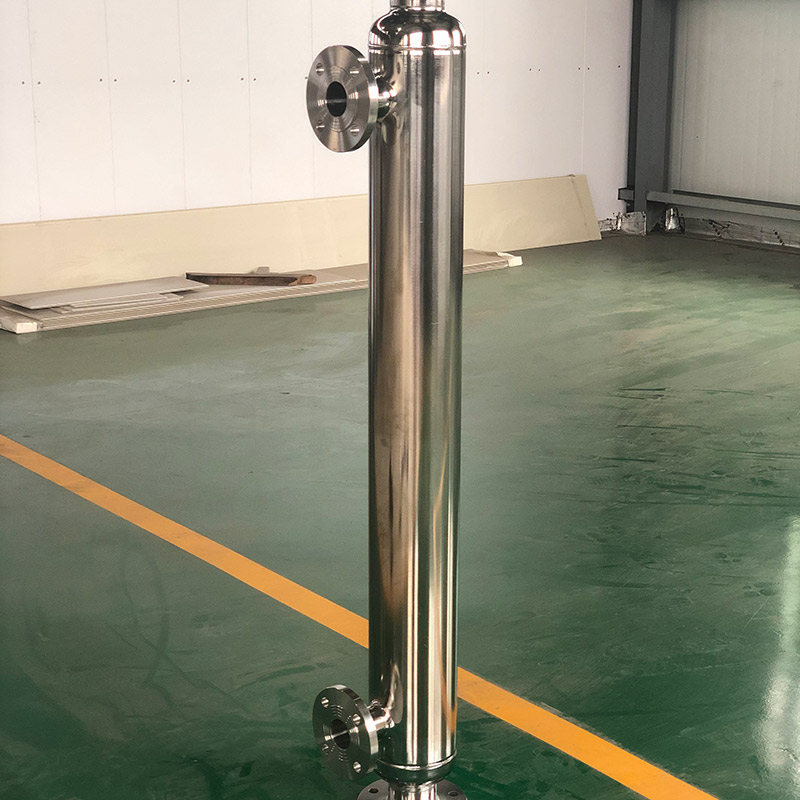

Detachable spiral wound tube heat exchanger

Material

Optional materials: austenitic stainless steel 316L, duplex stainless steel 2205, pure titanium, zirconium, etc.

Specifications

Optional specifications: φ8, φ10, φ12, φ14, φ16, φ19, φ25, etc.
Precise customization of tube spacing and layer spacing
According to the customer's process requirements, we can precisely customize the winding tube heat exchangers with various spacing

Complete range of products

It can produce Y-shaped spiral wound tube heat exchangers, L-shaped spiral wound tube heat exchangers, detachable spiral wound tube heat exchangers and customized large spiral wound tube heat exchangers. The heat exchange area of a single heat exchanger is 0.1~1000

High heat transfer coefficient

The unique helically wound tube bundle optimizes the flow state of the fluid on both sides, and the heat exchange capacity per unit area is 3 to 5 times that of traditional heat exchangers. Used as a heater can improve the utilization rate of heat source, and used as a condenser can improve the material recovery rate and save the cost of refrigerant. Long service life The elastic tube bundle in the heat exchanger can effectively absorb stress and vibration, prolong the service life of the heat exchanger, and the design life is as long as 20 years.

Low fouling tendency

Unique Y-shaped interface, no dead angle in the heat exchanger, both the tube side and the shell side can be completely emptied; the high flow rate design of the shell side effectively reduces the probability of scale attaching to the surface of the heat exchanger tube, and the scaling tendency is low.

Small footprint

The structure is compact, under the same working conditions, the volume is only about 1/5 of the traditional heat exchanger, saving space and reducing load.

Low running cost

Steam heating condition, save more than 10% steam. Condensation condition, the recovery rate is 1~3% higher, and the condensation temperature is lower under the same refrigerant; the same condensation temperature reduces the consumption of low-temperature refrigerant and saves operating costs.
