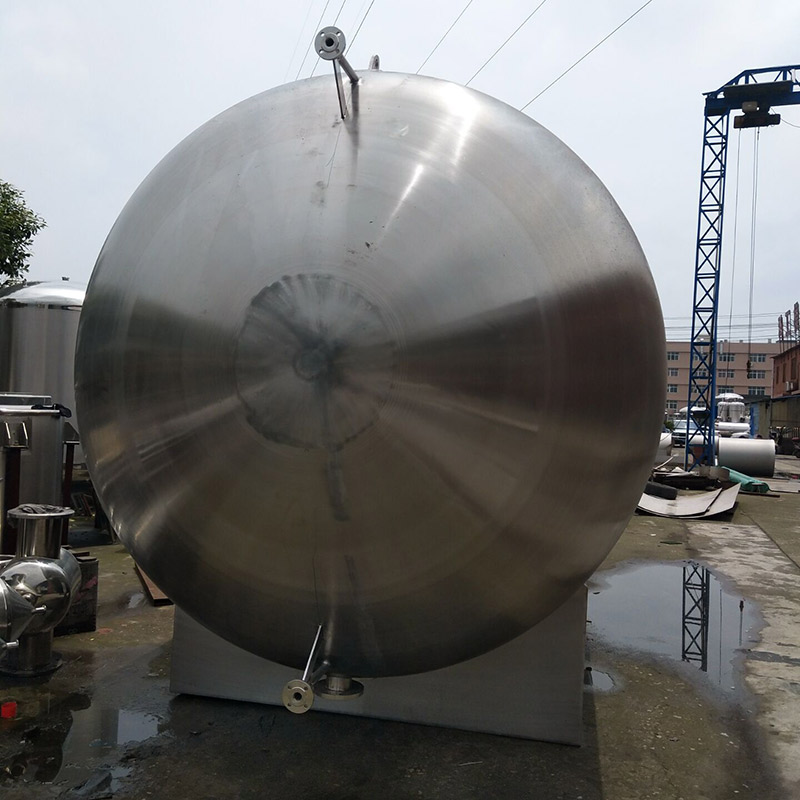

storage Tank for liquid
Conforming to GMP certification requirements, the storage tanks produced by our company have such features as reasonable design, advanced technology and automatic control. The tank body adopts vertical or horizontal single-layer or double-layer structure, and is filled with heat preservation materials according to users' requirements. The internal bladder is polished to Ra0.45μm. The external part adopts mirror plate or sand grinding plate for heat preservation. The water inlet, reflux vent, sterilization vent, cleaning vent and manhole are provided at the top and the air respirator of 0.22μm is installed.
Material: |
SS304 or SS316L |
Design Pressure: |
-1 -10 Bar (g) or ATM |
Work Temperature: |
0-200 °C |
Volumes: |
50~50000L |
Construction : |

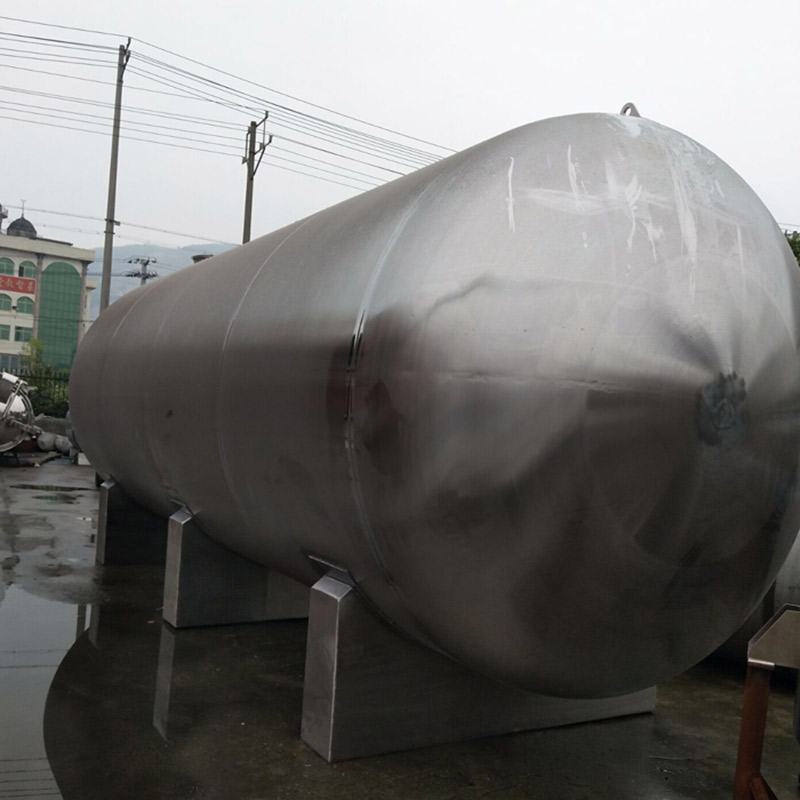

Vertical type or Horizontal type |
Jacket type : |
Dimple jacket, full jacket, or coil jacket |
Structure : |
Single layer vessel, vessel with jacket, vessel with jacket and insulation |
Heating or cooling function: |
According to the heating or cooling requirement ,the tank will have jacket for requried function |
Opitional Motor: |
ABB, Siemens, SEW or Chinese brand |
Surface Finish: |
Mirror Polish or Matt polish or Acid wash&pickling or 2B |
Standard components : |

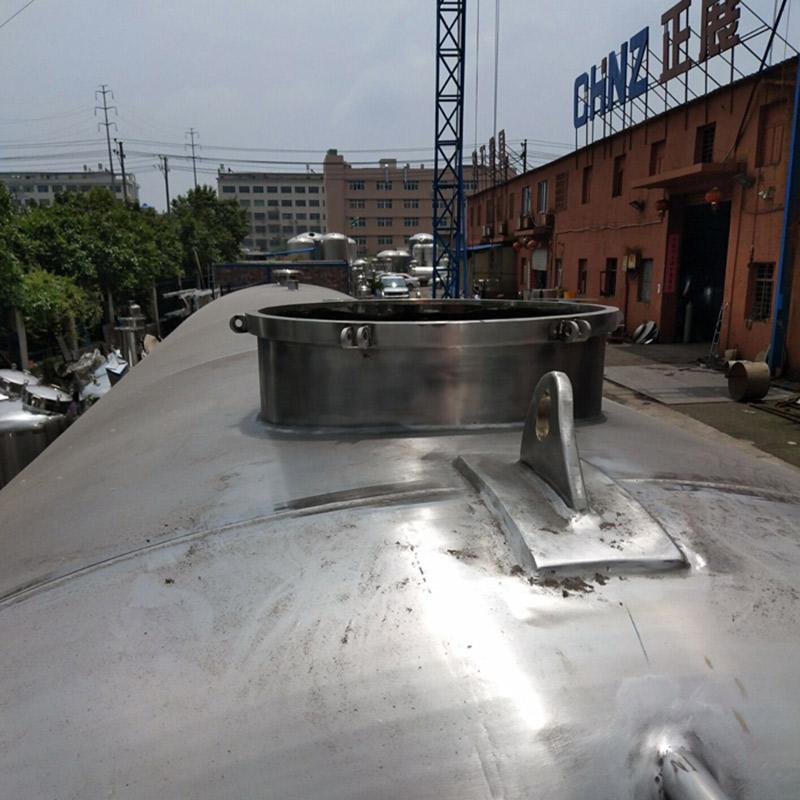

Manhole,sight glass , cleaning ball |
Optional components : |
Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100 |
