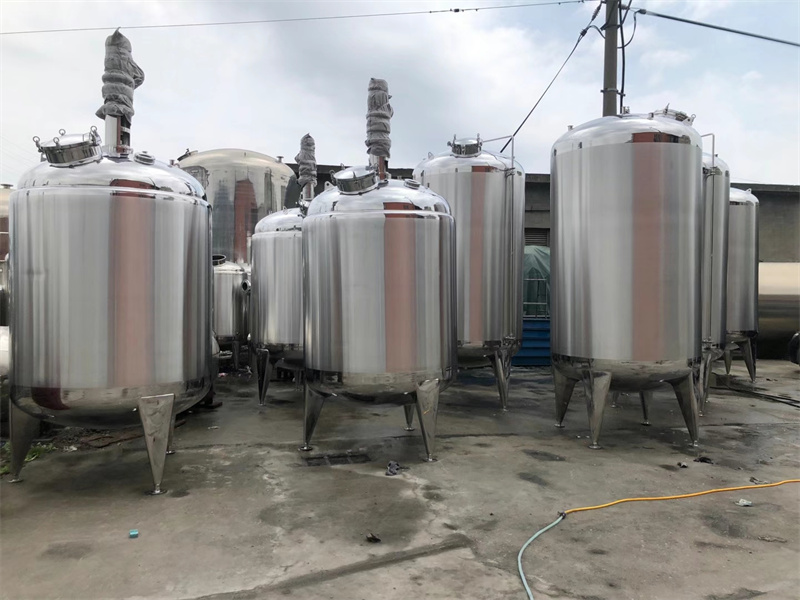

Jacket Mixer Stainless Steel Mixing Tank Agitator Tank
Description
● The clamp is applicable for ports, smooth and easy to clean, and also easy to assemble and disassemble.
● Easy to install and use: just plug in the required power cable (380V/three-phase four-wire) in the terminal of the electric control box, then add materials and heating medium to the inside of the tank and the jacket respectively.
● Stainless steel 304/316L is used for the tank liner and parts in contact with the material. The rest of the tank body is also made of stainless steel 304.
● Both the internal and external is mirror polished (roughness Ra≤0.4um), neat and beautiful.
● A movable baffle is installed in the tank to meet the mixing and stirring requirements, and there is no cleaning dead angle. It is more convenient to remove and wash it.
● Mixing at fixed speed or variable speed, meeting the requirements of different loading and different process parameters for agitation (it is frequency control, online real-time display of stirring speed, output frequency, output current, etc.).
● Agitator operation state: the material in the tank is mixed quickly and evenly, the load of the stirring transmission system is running smoothly, and the load operation noise ≤40dB(A) (lower than the national standard of <75dB(A), which greatly reduces the laboratory's sound pollution.
● The agitator shaft seal is sanitary, wear-resistant and pressure-resistant mechanical seal, which is safe and reliable.
● It is equipped with special equipment to prevent the reducer from contaminating the material inside the tank if there is any oil leakage, very safe and reliable.
● With automatic temperature control, high temperature sensitivity and high precision (with a digital display temperature controller and Pt100 sensor, easy to set up, economical and durable).
| RFQ parameters of Agitator Mixer Type magnetic mixing tank with stirrer | |
| Material: | SS304 or SS316L |
| Design Pressure: | -1 -10 Bar (g) or ATM |
| Work Temperature: | 0-200 °C |
| Volumes: | 50~50000L |
| Construction : | Vertical type or Horizontal type |
| Jacket type : | Dimple jacket, full jacket, or coil jacket |
| Agitator type: | Paddle, anchor, scraper, homogenizer, etc |
| Structure : | Single layer vessel, vessel with jacket, vessel with jacket and insulation |
| Heating or cooling function | According to the heating or cooling requirement ,the tank will have jacket for required |
| Optional Motor: | ABB, Siemens, SEW or Chinese brand |
| Surface Finish: | Mirror Polish or Matt polish or Acid wash&pickling or 2B |
| Standard components : | Manhole,sight glass , cleaning ball, |
| Optional components : | Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100 |
Features
Stainless steel mixing tank is widely used in such industries of coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, scientific research and etc. The equipment can be made of stainless steel 304 or 304L according to requirements of users' products, also heating and cooling devices are optional to meet different needs of production and process. Heating mode has two options of jacket electric heating and coil heating. The equipment has features of reasonable structure design, advanced technology and durable, simple operation and convenient use. It is an ideal processing equipment with less investment, quick operation and high profit.
