stainless steel mixing tank chemical homogenizer emulsifier tank

Short Description:

Structure and character

The function of an emulsifying tank is to dissolve one or more materials (water-soluble solid phase, liquid phase or gelatinous, etc.) in another liquid phase and hydrate them into a relatively stable emulsion. Widely used in edible oil, powder, sugar and other raw materials emulsification mixing, some coatings, paint emulsification dispersion also use emulsification tank, especially suitable for some difficult sol additives such as CMC, xanthan gum.
The unit is easy to operate, stable performance, good homogeneity, high production efficiency, convenient cleaning, reasonable structure, less area, high degree of automation.

Send email to us

Product Detail

Product Tags

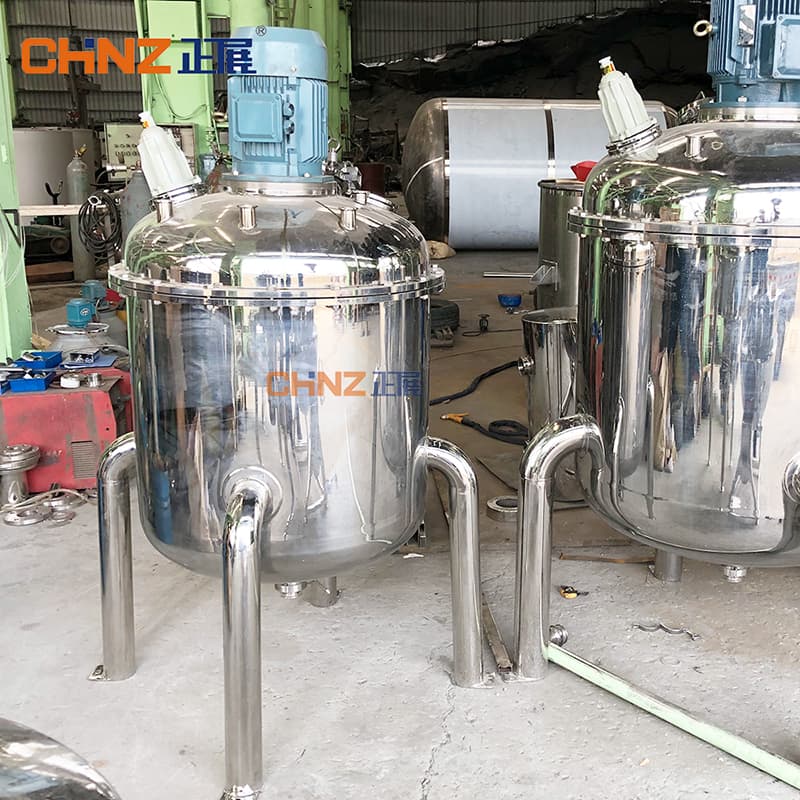

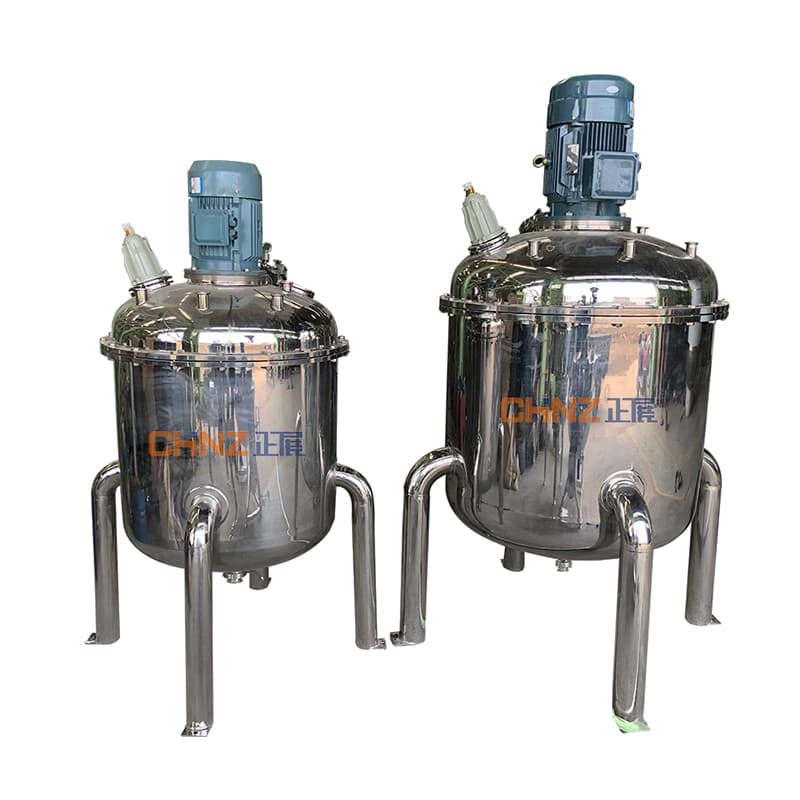

Emulsifying tank

Emulsifying tank is suitable for the production of cosmetics, medicine, food, chemistry, dyeing, printing ink and other industrial products, especially for the material with large viscosity and high solid content.
(1) Cosmetics industrial products: face cream, lotion, lipstick, shampoo, etc
(2) Pharmaceutical industrial products: ointment, syrup, eye medicine, antibiotics, etc
(3) Food industrial products: jam, butter, margarine, etc
(4) Chemical industrial products: chemicals, synthetic adhesives, etc
(5) Dyeing industrial products: pigments, titanium oxide, etc
(6) Printing ink: color ink, resin ink, newspaper ink, etc
(7) Others: pigments, waxes, coatings, etc

Main Feature

The unit adopts the upper coaxial three-heavy agitator, hydraulic lifting to open the cover, fast homogenizing agitator speed: 0-3000R /min (frequency conversion speed), slow wall scraping agitator stirring automatically close to the bottom and wall of the tank. Vacuum suction, especially for powder materials using vacuum suction to avoid dust flying. The whole process is carried out under vacuum condition to prevent bubbles from forming after high speed stirring, which can meet the requirements of hygiene and sterility. The system is equipped with CIP cleaning system, the contact part between container and material is made of SUS316L material, and the inner surface is mirror polished (sanitary grade).
